Animations

Each object (present in the object tree, area 1) can be assigned to one or more animations. The animations allow to change the value of the properties of one or more objects in a given time and delay.

Information : animations are not simulated (for the moment 😉 in Magneto Studio®, they are only visible directly on your embedded hardware.

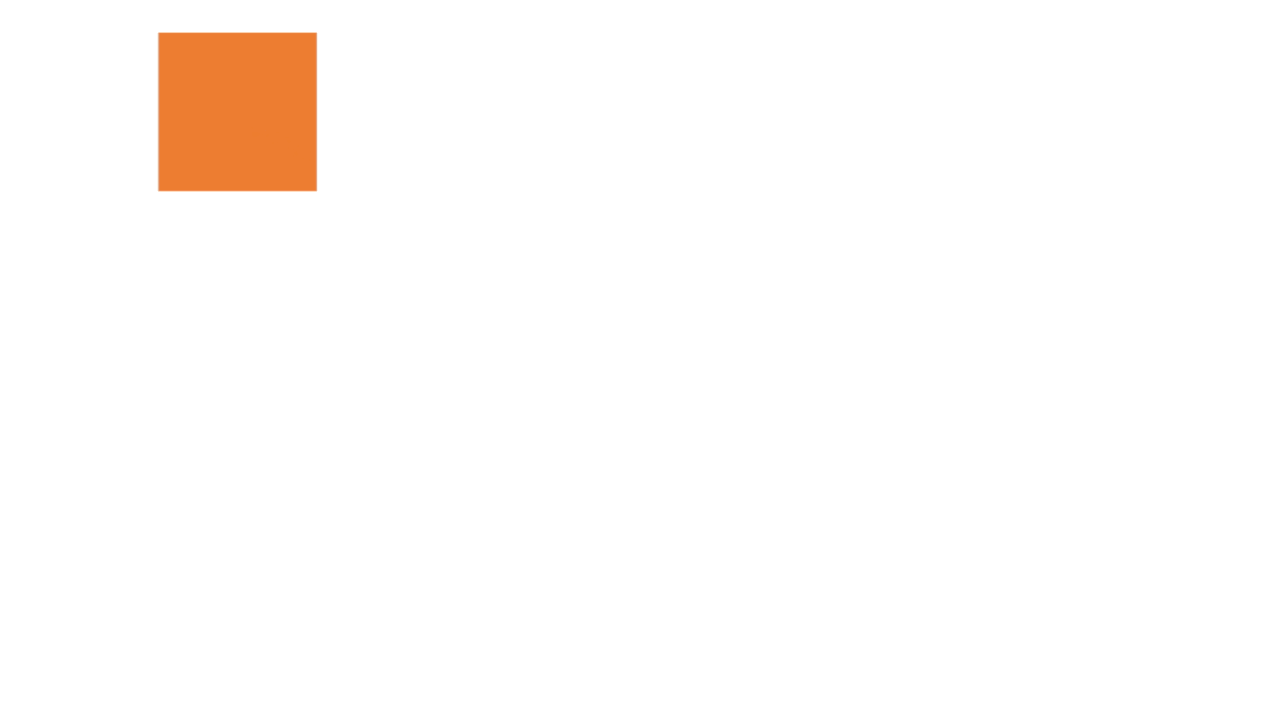

Tutorial: create an animation of a single object

How to create an animation ?

Here is the process :

  1. Select an object that you want to animate.
  2. Click on the button "Animation" (area 4).
  3. Click on the button "+" (at the bottom of the work area, area 2) to add an animation state (for the creation of the first step you can move your object and the step will be added automatically).
  4. Change the object's properties.
  5. Repeat actions 3 and 4 if you wish to add more steps.
  6. Click on the button "ok"

And there you have it, your animations are ready to be used.

Tutorial: assign an additional object to an animation

Tip : As said before, it is possible to assign an animation to several objects. To do this, if you are still in the manipulation of your animation (i.e. you have not yet clicked on the "ok" button), simply double-click on a new object in your object tree (area 1) to assign it to the animation. If you want to modify an animation, just double-click on the one you want to modify in the object tree (area 1).

You want to see the result of your labor and therefore see your animations ?

To do this you need to assign your animation to an action (voir Actions)
